Insert or Remove SIM & Memory Card

Insert or Remove SIM & Memory Card

Get instructions about how to install or remove a SIM or memory card in your device.

INSTRUCTIONS & INFO

Prenote info

A SIM card may already be inserted. For help activating a new SIM card, visit Activate and Use Your Device. MicroSD/memory cards expand the storage capacity of device and are sold separately. This device can use a microSD card up to 512GB.

In this tutorial, you will learn how to:



• Locate SIM tray
• Insert or remove SIM & microSD card


The No SIM icon will be displayed in the Notification bar when there is no SIM card in the device.

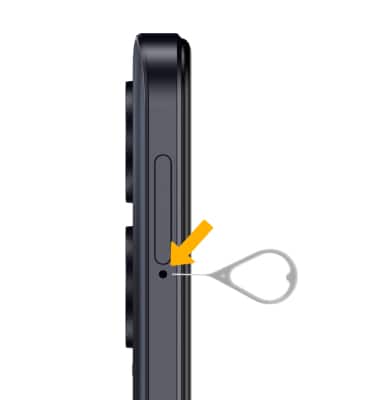

 Locate SIM tray

The SIM tray is located on the top left side of the device. To insert a SIM or microSD card, insert a SIM tool into the small hole to eject the SIM & microSD tray.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the home screen, swipe down from the Notification bar with two fingers > select the settings Settings icon > Storage > dropdown icon > SD card >  Menu icon Menu icon > Eject. Ensure you're inserting the tool straight into the pinhole and not at an angle. Inserting at an angle can prevent the SIM tray from ejecting properly.

Image 1

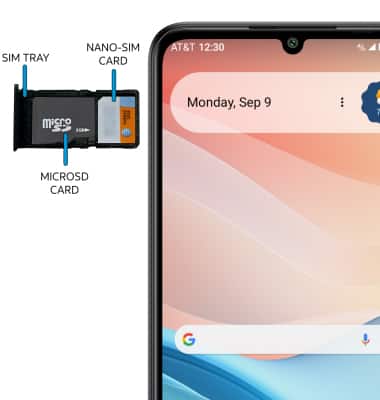

 Insert or remove SIM & microSD card



Image 2



• Insert or remove the Nano-SIM card into the SIM tray with the gold contacts facing down and the notched edge on the top left. Gently press the SIM card in until it clicks into place.
• Insert or remove the microSD card into the SIM tray with the gold contacts facing down and the notched edge on the bottom right. Gently press the microSD card in until it clicks into place.

Note: Do not touch the gold contacts on your SIM card as it could damage the card.



 Storage

Internal Memory: Up to 128GB
External Memory: Up to 2TB
